Charger fuse for protection of highpower DC EV chargers

Safety is our top priority when it comes to DC (Mode 4) charging systems. That's why our Charger fuse plays a vital role in safeguarding DC circuits, capable of handling voltages up to 1000V DC and rated currents up to 600A. These specially designed fuses feature unique dimensions and connection contacts tailored to meet the specific requirements of each charging application.

The electrical protection of DC EV charging stations is of utmost importance in ensuring a safe and secure charging environment. Charger fuse boasts impressive characteristics, including a 1000V DC voltage rating, rated currents ranging from 50A to 600A, a breaking capacity of 30 kA, and compliance with standards IEC 60269-4 and IEC 60269-6. With a tested time constant of 3 mS, it proves suitable for a wide range of DC applications. Available in aR and gPV characteristic, which further enhances its performance and reliability, the Charger fuse is ideal for public fast (high power) charging stations, where the need for efficient and robust electrical protection is paramount.

Catalogue

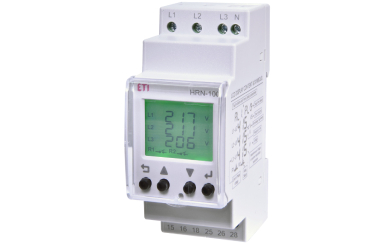

Frequency and voltage monitoring relay HRN-100

Multifunction voltage and frequency monitoring relay with LCD display for protection of devices connected to 3 phase network.

 Advantages:

• 3-wire or 4-wire connection (with or without neutral)
• Monitoring of upper and lower voltage & frequency in 3-phase circuits, phase sequence, failure and asymmetry incl. neutral fail (only in 4-wire connection).
• The device is supplied from monitored voltage.
• Both output contacts can be set individually.
• Measures real effective value of AC voltage (True RMS).
• Optional response delay of the output contact to the measured fault state or transition from the fault state to the OK state incl. delayed response of output contacts after connecting the power supply
• Optional closing or opening of the output contact when measuring a fault state (Fail Safe / Non Fail Safe).



Catalogue

Programmable staircase switch CRM-46

Staircase switch enables delayed switching off of lighting on stairs, corridors, entrances, common areas or for delayed running of fans in the toilet or bathroom:

Advantages:

• 1 TE size, DIN rail mounted.
• Supply voltage: AC 230 V
• Long press (> 2 s) can switch off the output prematurely and end the ongoing delay.
• Control input with the possibility of loading up to 100mA load (glim lamp, LED in the button, etc.).



Catalogue

SSQ Modular changeover switch

Modular changeover switches SSQ I-0-II (network - generator) enable simple and trouble-free switching of power supply sources in case of emergency (e.g. mains voltage failure). They are designed for installation in switchgear equipped with TH35 rails adapted for mounting modular devices. Switches can be sealed for the selected positions: I or II.

Advantages:

• the family of SSQ changeover switches expands the EVE modular system range,
• all changeover switches are made in modular form - module width 18 mm,
• the distance between the changeover switch contacts in the open state is larger than 3 mm per one pair of contacts, (two pair of contacts in the current path of changeover switch)
• the changeover switches are equipped with terminals enabling connection of conductors of cross-section : 16 mm2 for a “wire” type wire; 10 mm2 for a “ stranded wire” type cable.



Catalogue

NEW network analyzer END20LRS

END20LRS is distinguished by a high measurement accuracy, legible backlight LCD display and an attractive price in relation to offered measuring functions. It is the ideal tool to control and monitor energy quality parameters and energy consumption in all industry branches, public utilities or in public service buildings.

Features:



Catalogue

3MEM10-EVRS energy meters

3MEM40-EVRS energy meters are intended for energy measurements in the three-phase and one phase electrical charger stations due to allowed high temperature operation (up to 70'C). Measuring energy directly in 4-wire networks according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates power, energy, current, voltage, power factor, power angle, frequency, harmonics of THD voltage and THD current harmonics.

Features:

Home24h – Smart home of the Future

ETI participated in the European project Home24h - Smart home of the future for a comfortable and healthy living and working environment.

EV Smart Charger

E-mobility market is changing rapidly and becoming more and more sustainable. That is why we are pleased to present the new EV Smart Charger line of charging stations for electric vehicles. New line offers the most advanced solutions and a full range of products for residential or commercial needs.

  Advantages:



Catalogue

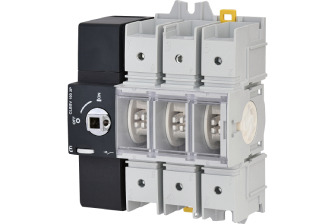

Compact Load Break Switch - CLBSV

CLBSV are manually operated multi-pole devices for switching low voltage electrical circuits with currents up to 160A.  Main novelty is that these devices got visible contacts.

  Features:

 - Possibility to connect additional contacts with pre-break function

 - Double-visible chain break ensures safe maintenance

- Possibility of direct, external front and side control

 - Terminal covers provide protection against accidental contact and phase separation of the switch, and Perforated holes allow for contact temperature monitoring without removing the covers

 - Ability to seal terminal covers

Catalogue

ATS controller (ATSC25)

ATSC25 “ATS Controller” in association with an RTSE (Remote transfer switching equipment) forms an ATSE (Automatic transfer switching equipment), the ATSE formed by the association is designed for use in power systems for the safe transfer of a load supply between a normal and alternate source.

Catalogue
