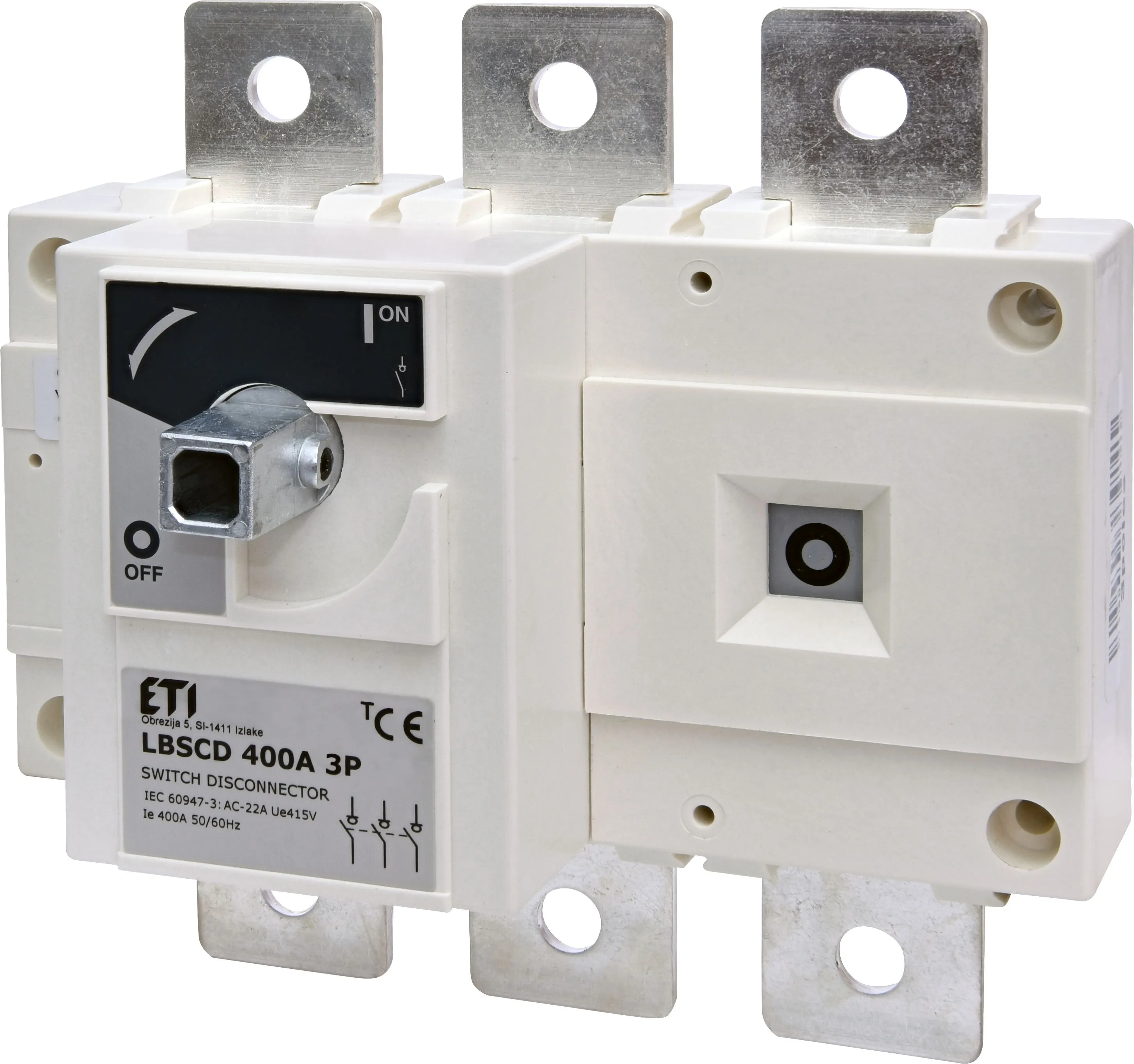

Switch disconnector LBSCD 400 3P 004661914

Specifications

ETI Code:
004661914
Description:
LBSCD 400 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
400
Rated operational current Ie AC-21 A/B at 415V (A):
400
Rated insulation voltage (V):
800
Max. rated operational voltage (V AC):
690
Mounting:
Panel

Documents

Product

Net weight of the product
1.76  kg
Customs tariff
85365080

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
3838895875772
Transport packaging weight
1.85  kg
Pallet quantity
210

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
004661914 Flush mounted enclosure Switch disconnector, LBSCD 400 3P ETISWITCH Load Break Switch LBS LBS body (no handle included) 3/4 POLES LBS body(no handle included) 3/4 POLES 3P Switches for panel mounting ETISWITCH Load break switch LBS LBSCD 400 3P Number of poles 3 Mounting Panel Max. rated operational voltage 690V AC Rated operational current Ie AC-21 A/B at 415V 400A Rated insulation voltage 800V Thermal current Ith 400A Switch disconnector LBSCD Panel 3 400A 800V Switch disconnector LBSCD Panel 3 400A 800V
