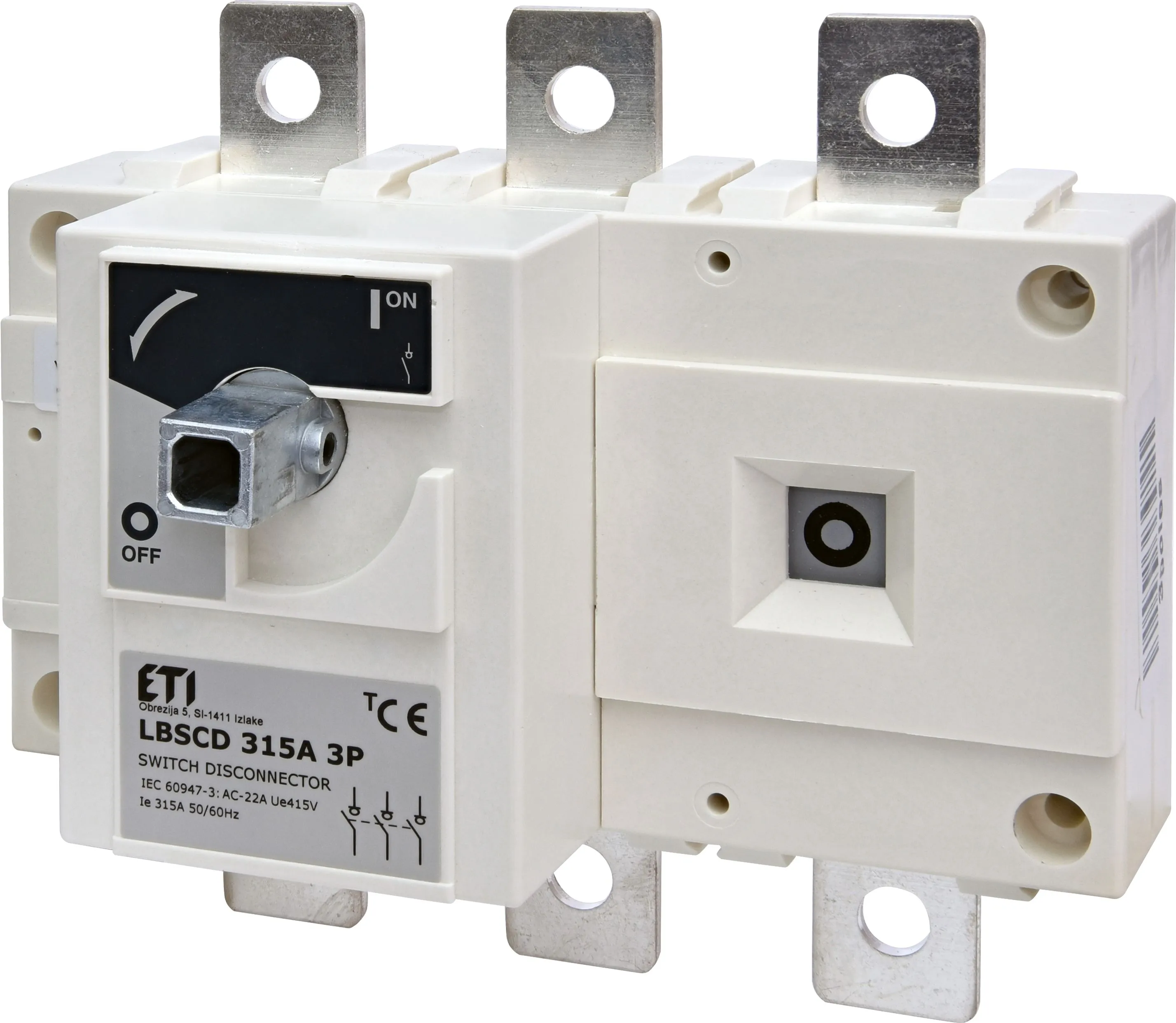

Switch disconnector LBSCD 315 3P 004661913

Specifications

ETI Code:
004661913
Description:
LBSCD 315 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
315
Rated operational current Ie AC-21 A/B at 415V (A):
315
Rated insulation voltage (V):
800
Max. rated operational voltage (V AC):
690
Mounting:
Panel

Documents

Product

Net weight of the product
1.76  kg
Customs tariff
85365080

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
3838895875765
Transport packaging weight
1.76  kg
Pallet quantity
215
