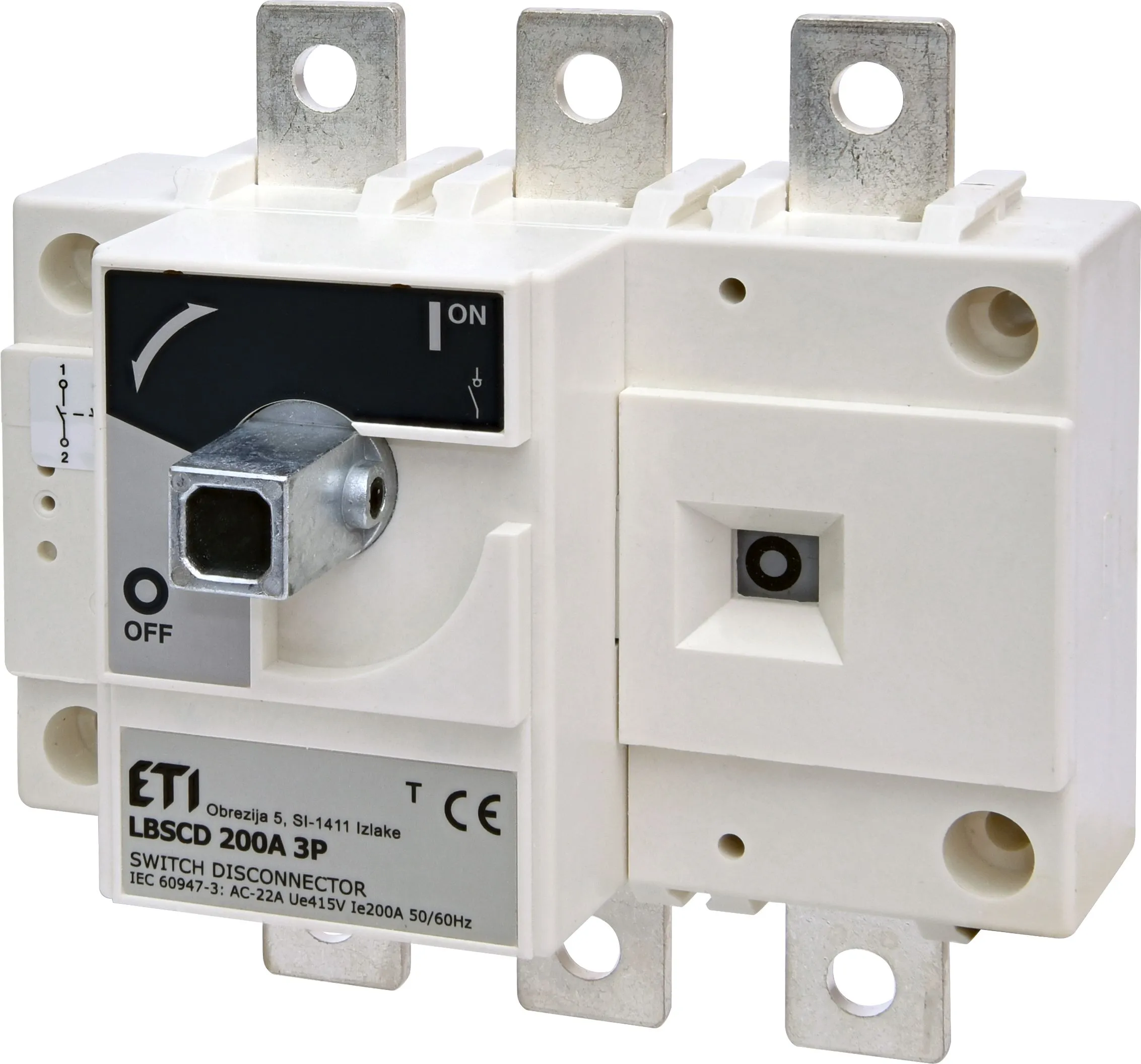

Switch disconnector LBSCD 200 3P 004661912

Specifications

ETI Code:
004661912
Description:
LBSCD 200 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
200
Rated operational current Ie AC-21 A/B at 415V (A):
200
Rated insulation voltage (V):
800
Max. rated operational voltage (V AC):
690
Mounting:
Panel

Documents

Product

Net weight of the product
0.47  kg
Customs tariff
85365080

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
3838895875758
Transport packaging weight
0.47  kg
Pallet quantity
380

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
004661912 Flush mounted enclosure Switch disconnector, LBSCD 200 3P ETISWITCH Load Break Switch LBS LBS body (no handle included) 3/4 POLES LBS body(no handle included) 3/4 POLES 3P Switches for panel mounting ETISWITCH Load break switch LBS LBSCD 200 3P Number of poles 3 Mounting Panel Max. rated operational voltage 690V AC Rated operational current Ie AC-21 A/B at 415V 200A Rated insulation voltage 800V Thermal current Ith 200A Switch disconnector LBSCD Panel 3 200A 800V Switch disconnector LBSCD Panel 3 200A 800V
