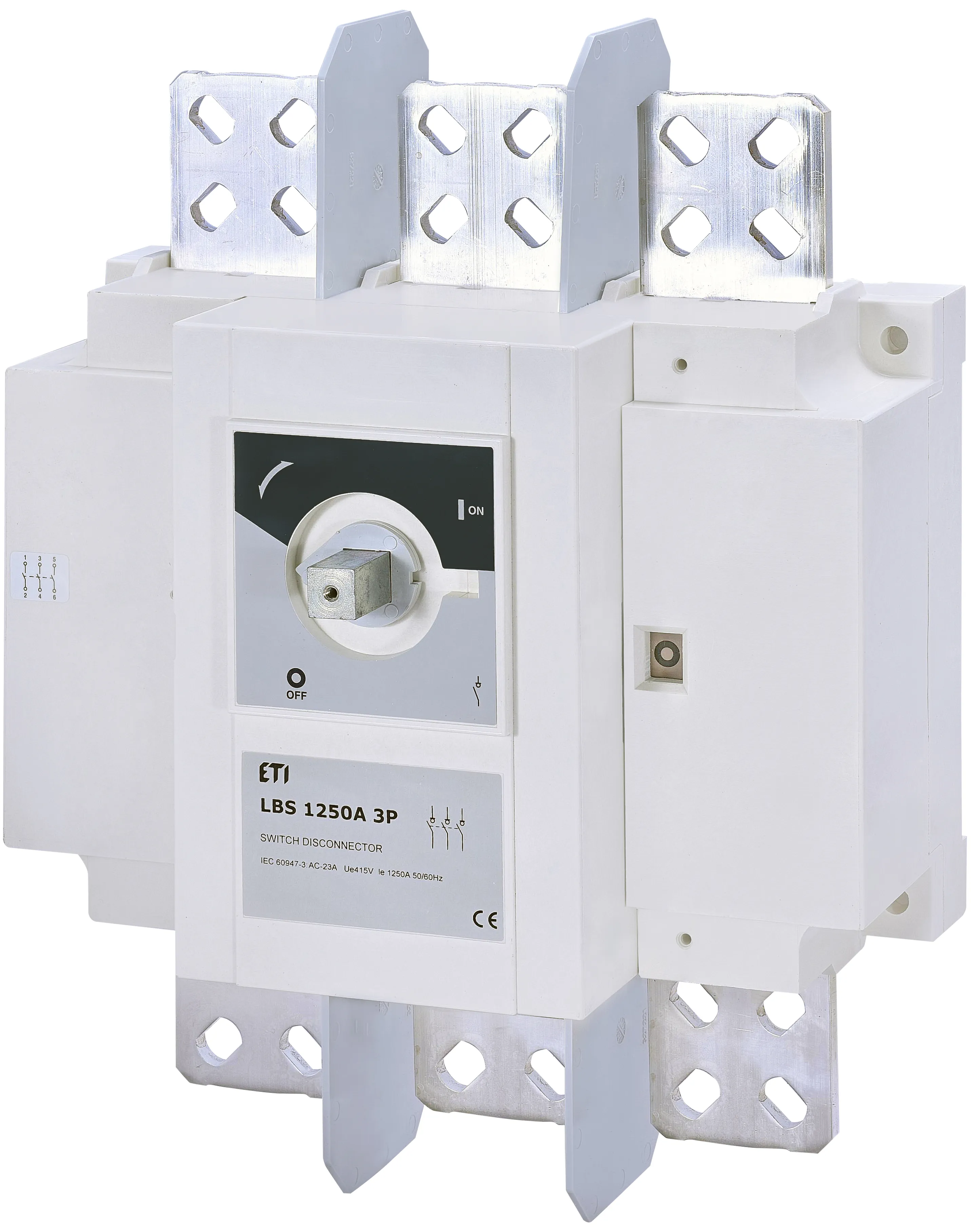

Switch disconnector LBS 1250 3P 004661456

Specifications

ETI Code:
004661456
Description:
LBS 1250 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
1250
Rated operational current Ie AC-21 A/B at 415V (A):
1250
Rated insulation voltage (V):
1000
Max. rated operational voltage (V AC):
415
Mounting:
Panel mounted

Documents

Product

Net weight of the product
9.147  kg
Customs tariff
85365080
logis_net_width
280  mm
logis_net_height
330  mm
logis_net_depth
166  mm

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
3838895718895
Transport packaging weight
9.147  kg
Pallet quantity
40
Classification
EC000216
Class name
Switch disconnector
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Rated permanent current Iu
150A
Rated operation power at AC-23, 400 V
710kW
Number of poles
3
Device construction
Built-in device fixed built-in technique
Suitable for floor mounting
Yes
ETIM Classification – Version 7.0
