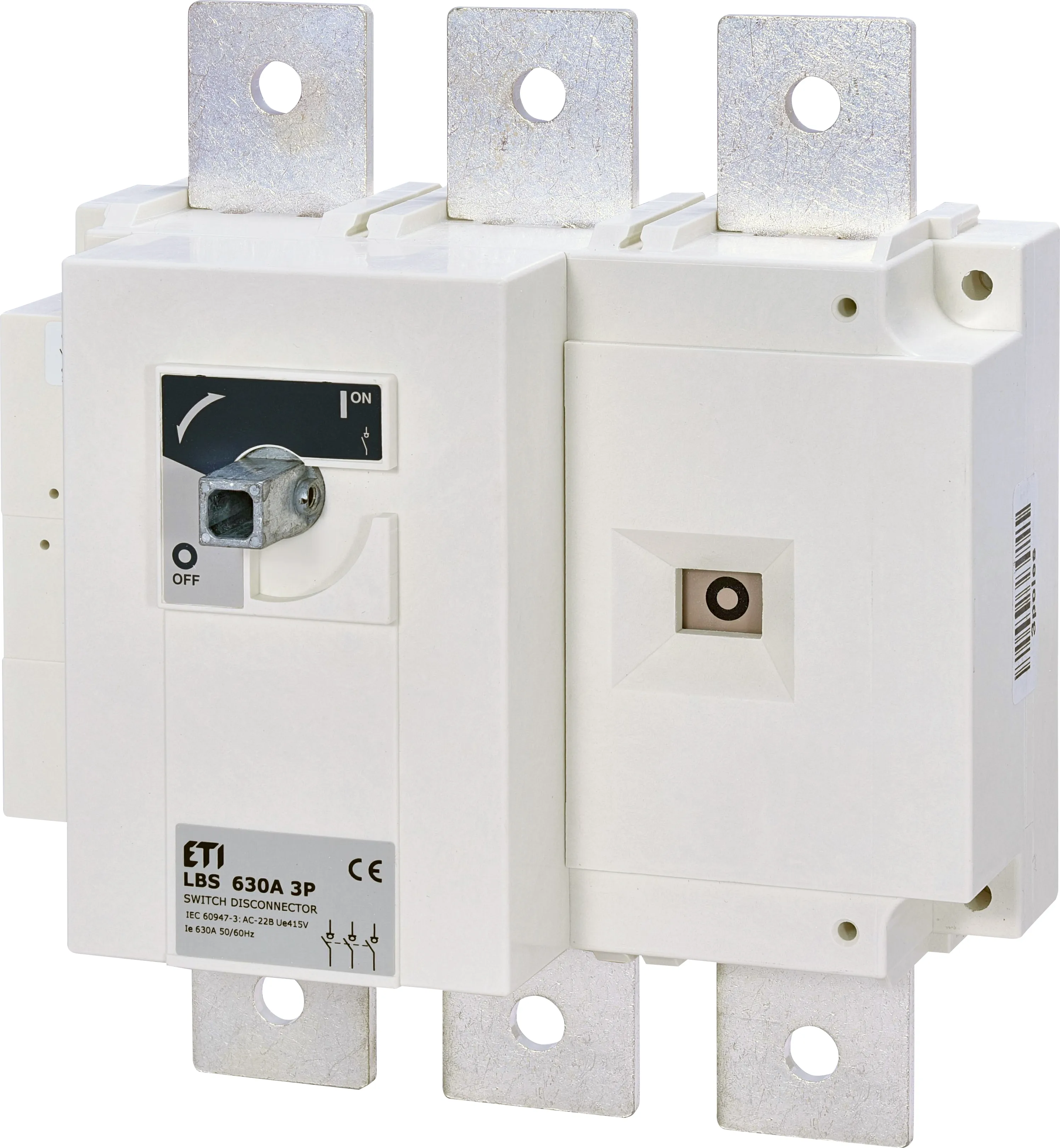

Switch disconnector LBS 630 3P 004661453

Specifications

ETI Code:
004661453
Description:
LBS 630 3P
Class name:
Switch disconnector
Number of poles:
3
Thermal current Ith (A):
630
Rated operational current Ie AC-21 A/B at 415V (A):
630
Rated insulation voltage (V):
1000
Max. rated operational voltage (V AC):
415
Mounting:
Panel mounted

Documents

Product

Net weight of the product
4.363  kg
Customs tariff
85365080
logis_net_width
230  mm
logis_net_height
260  mm
logis_net_depth
110  mm

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
3838895718864
Transport packaging weight
4.363  kg
Pallet quantity
70
Classification
EC000216
Class name
Switch disconnector
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Rated permanent current Iu
630A
Rated operation power at AC-23, 400 V
280kW
Number of poles
3
Device construction
Built-in device fixed built-in technique
Suitable for floor mounting
Yes
ETIM Classification – Version 7.0
