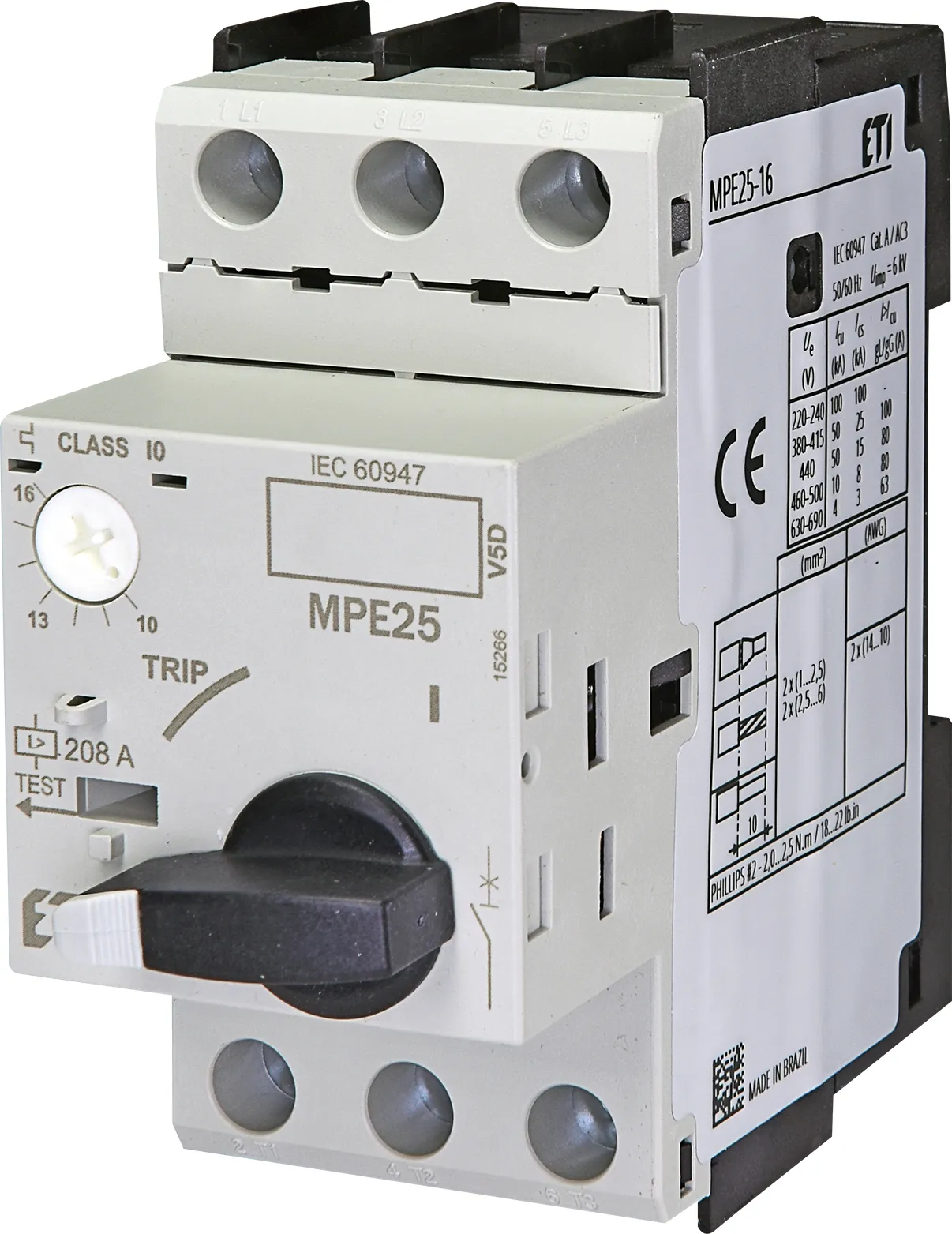

Mot.protec.circuit breaker MPE25-16 004648011

Specifications

ETI Code:
004648011
Description:
MPE25-16
Class name:
Mot.protec.circuit breaker
Current setting range (A):
10-16
Short-circuit release Irm (A):
208
Rated operation power at AC3 (kW):
7,5
Max. rated operational voltage (V AC):
690

Documents

Product

Net weight of the product
0.32  kg
Customs tariff
85362010

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
7894171734559
Basic packaging weight
0.332  kg

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
7890355188347
Transport packaging weight
0.36  kg
Pallet quantity
1800
Classification
EC000074
Class name
Motor protection circuit-breaker
Number of knife blade fuse holders
3
Overload release current setting
10.0…16.0A
Adjustment range undelayed short-circuit release
208…208A
Phase failure sensitive
Yes
Switch off technique
Thermomagnetic
Rated operating voltage
400…690V
Rated permanent current Iu
16A
Rated operation power at AC-3, 230 V
7,5kW
Rated operation power at AC-3, 400 V
7,5kW
Type of electrical connection of main circuit
Frame clamp
Device construction
Built-in device fixed built-in technique
With integrated auxiliary switch
No
With integrated under voltage release
No
Number of poles
3
Rated short-circuit breaking capacity lcu at 400 V, AC
50kA
Degree of protection (IP)
IP20
ETIM Classification – Version 7.0
