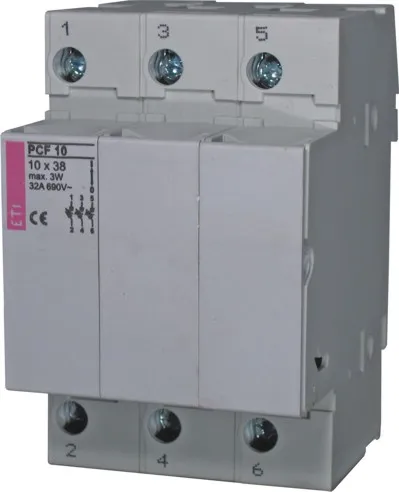

Fuse disconnector PCF 10 3p LED L 002551014
Specifications
- ETI Code:
- 002551014
- Description:
- PCF 10 3p LED L
- Class name:
- Fuse disconnector
- Mounting type:
- TH 35
- Size:
- 10x38
- Rated current (A):
- 32
- Number of poles:
- 3
- Rated AC voltage (V):
- 690
- Utilization category:
- AC-22B
- Connection:
- 0,5 - 10mm2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400031921
- Net weight of the product
- 178 g
- Customs tariff
- 85389099
- logis_net_width
- 53 mm
- logis_net_height
- 83 mm
- logis_net_depth
- 71 mm
Basic packaging
- Basic packaging quantity
- 4
- EAN code for a basic packaging
- 3838895726388
- Basic packaging weight
- 0.74 kg
Transport packaging
- Transport packaging quantity
- 36
- EAN code for a transport packaging
- 3838895726395
- Transport packaging weight
- 7.01 kg
- Pallet quantity
- 1872
ETIM Clasification
- Classification
- EC001040
- Class name
- Fuse switch disconnector
- Construction size
- 10x38
- Rated current
- 32
- Mounting method
- 35mm DIN rail
- Number of knife blade fuse holders
- 3
- Max. rated operation voltage Ue AC
- 690V
- Rated permanent current Iu
- 32A
- Suitable for fuses
- Other
- Number of poles
- 3
- Degree of protection (IP), front side
- IP20
