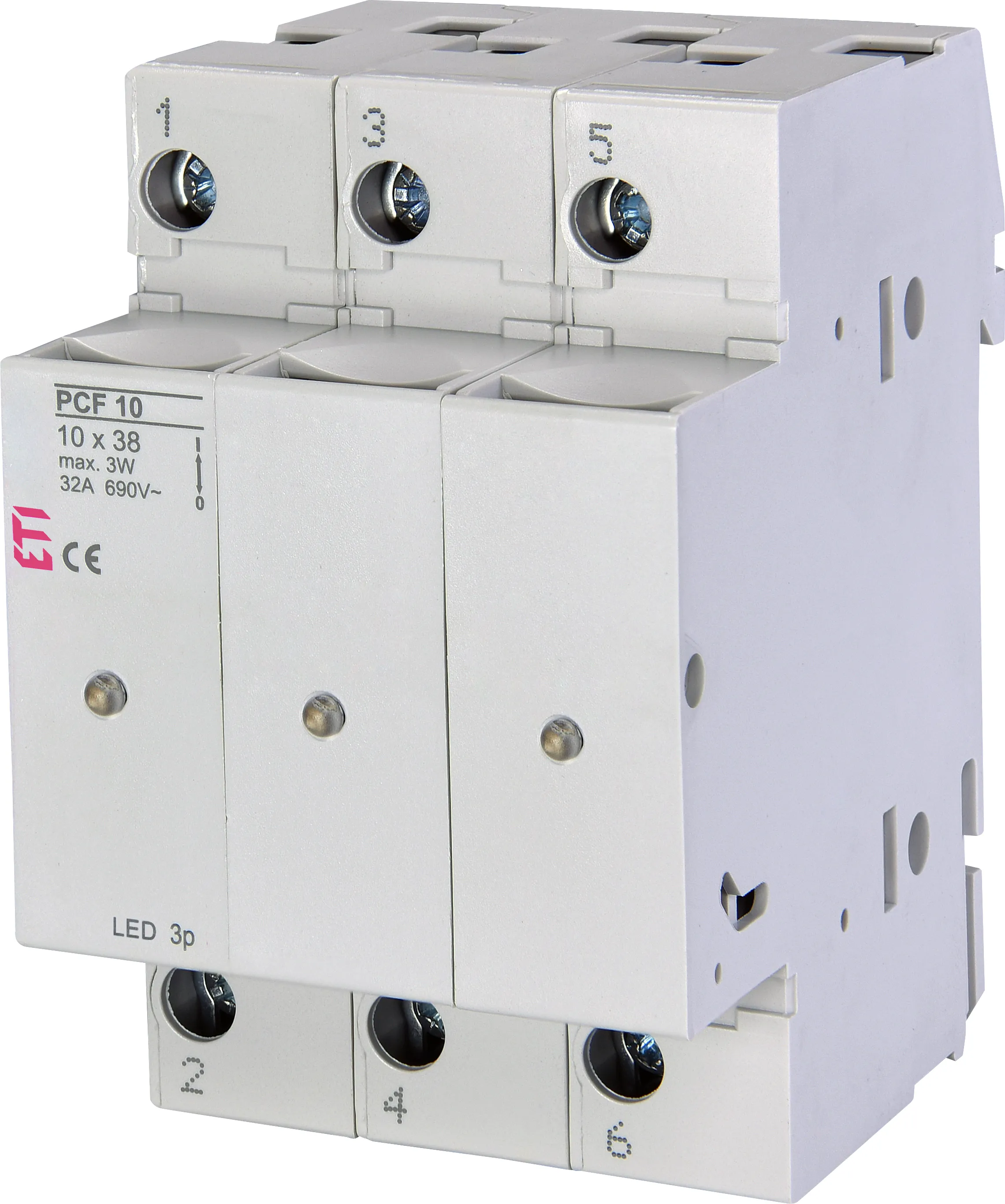

Fuse disconnector PCF 10 3p LED 002550014
Specifications
- ETI Code:
- 002550014
- Description:
- PCF 10 3p LED
- Class name:
- Fuse disconnector
- Mounting type:
- TH 35
- Size:
- 10x38
- Rated current (A):
- 32
- Number of poles:
- 3
- Rated AC voltage (V):
- 690
- Utilization category:
- AC-22B
- Connection:
- 0,5 - 10mm2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400031907
- Net weight of the product
- 0.197 kg
- Customs tariff
- 85389099
- logis_net_width
- 53 mm
- logis_net_height
- 83 mm
- logis_net_depth
- 71 mm
Basic packaging
- Basic packaging quantity
- 4
- EAN code for a basic packaging
- 3838895357506
- Basic packaging weight
- 0.75 kg
Transport packaging
- Transport packaging quantity
- 36
- EAN code for a transport packaging
- 3838895357513
- Transport packaging weight
- 7.1 kg
- Pallet quantity
- 1872
ETIM Clasification
- Classification
- EC002705
- Class name
- Holder for cylindrical fuse
- Rated current
- 32
- Max. rated operation voltage Ue AC
- 690
- Construction size
- 10x38
- Number of knife blade fuse holders
- 3
- Mounting method
- Other
- For fuse size
- 10x38 mm
- Number of poles
- 3
