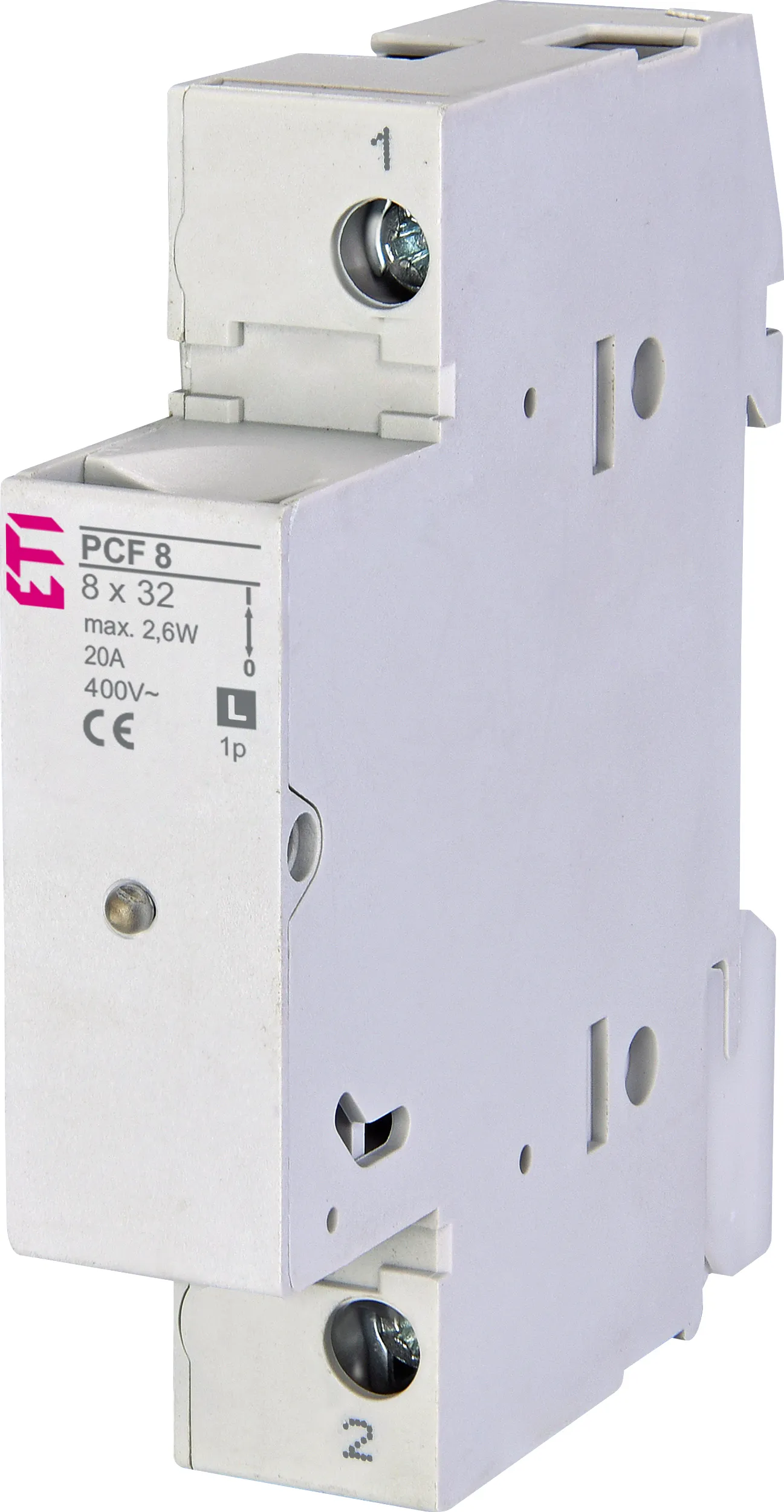

Fuse disconnector PCF 8 1p LED L 002531011

Specifications

ETI Code:
002531011
Description:
PCF 8 1p LED L
Class name:
Fuse disconnector
Mounting type:
TH 35
Size:
8x31
Rated current (A):
20
Number of poles:
1
Rated AC voltage (V):
400
Utilization category:
AC-22B
Connection:
0,5 - 10mm2

Documents

Product

EAN code for a single product
3838400031617
Net weight of the product
0.063  kg
Customs tariff
85389099
logis_net_width
18  mm
logis_net_height
83  mm
logis_net_depth
71  mm

Basic packaging

Basic packaging quantity
12
EAN code for a basic packaging
3838895569718
Basic packaging weight
0.72  kg

Transport packaging

Transport packaging quantity
108
EAN code for a transport packaging
3838895569725
Transport packaging weight
6.83  kg
Pallet quantity
5616
Classification
EC002705
Class name
Holder for cylindrical fuse
Construction size
8x31
Number of knife blade fuse holders
1
Rated current
20
Max. rated operation voltage Ue AC
400
Mounting method
Other
For fuse size
Other
Number of poles
1
ETIM Classification – Version 7.0
