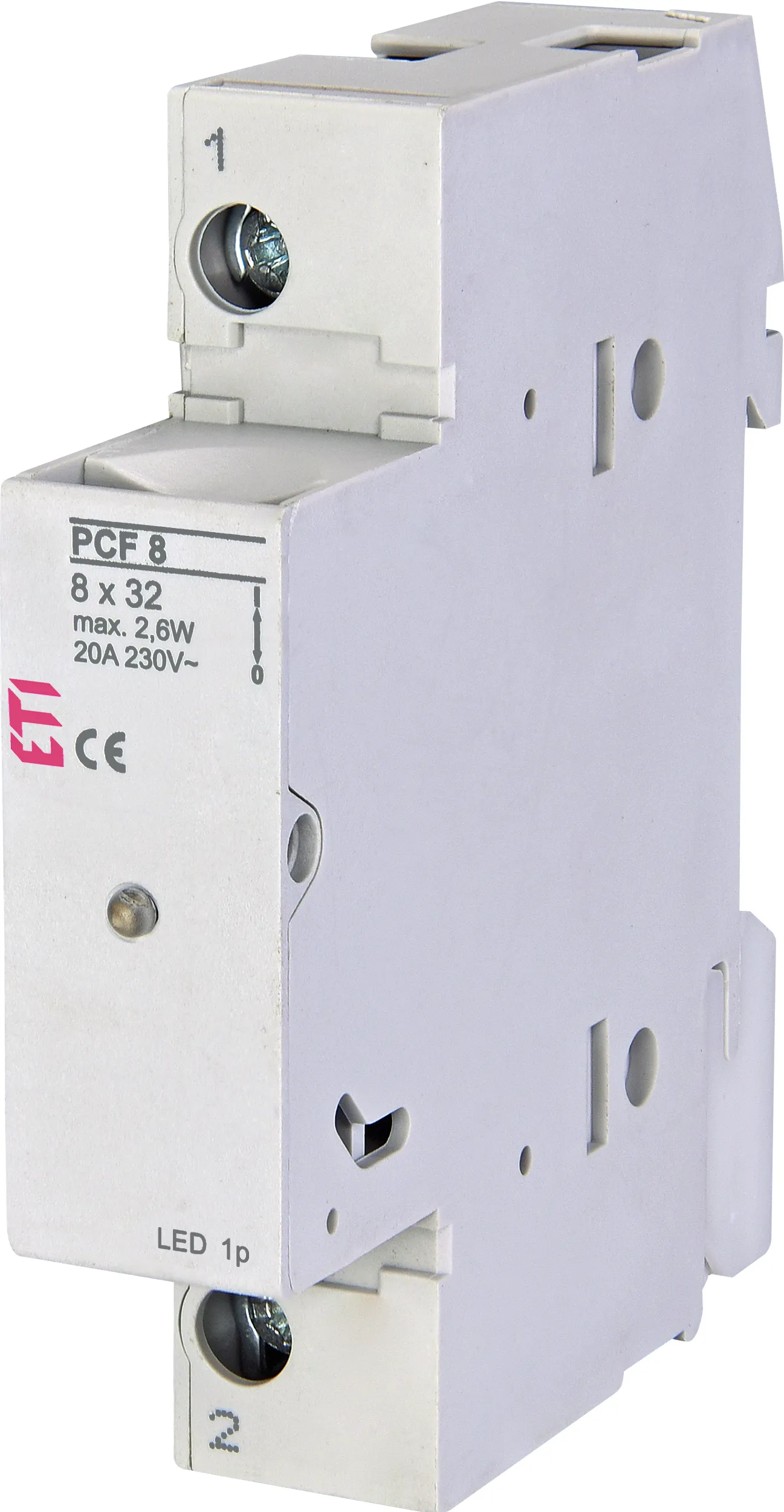

Fuse disconnector PCF 8 1p LED 002530011
Specifications
- ETI Code:
- 002530011
- Description:
- PCF 8 1p LED
- Class name:
- Fuse disconnector
- Mounting type:
- TH 35
- Size:
- 8x31
- Rated current (A):
- 20
- Number of poles:
- 1
- Rated AC voltage (V):
- 400
- Utilization category:
- AC-22B
- Connection:
- 0,5 - 10mm2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400031594
- Net weight of the product
- 0.063 kg
- Customs tariff
- 85389099
- logis_net_width
- 18 mm
- logis_net_height
- 83 mm
- logis_net_depth
- 71 mm
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895357599
- Basic packaging weight
- 0.72 kg
Transport packaging
- Transport packaging quantity
- 108
- EAN code for a transport packaging
- 3838895357605
- Transport packaging weight
- 6.83 kg
- Pallet quantity
- 5616
ETIM Clasification
- Classification
- EC002705
- Class name
- Holder for cylindrical fuse
- Construction size
- 8x31
- Number of knife blade fuse holders
- 1
- Rated current
- 20
- Max. rated operation voltage Ue AC
- 400
- Mounting method
- Other
- For fuse size
- Other
- Number of poles
- 1
