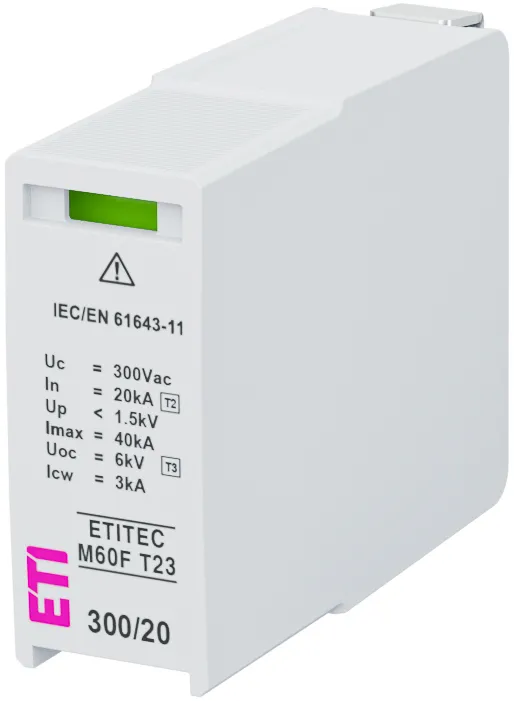

Surge arrester MOD.ETITEC M60F T23 300/20 002440864

Specifications

ETI Code:
002440864
Description:
MOD.ETITEC M60F T23 300/20
Class name:
Surge arrester
Function:
SPD Module
Type:
T2, T3
For use with:
ETITEC M60F T23

Documents

Product

Net weight of the product
0.069  kg
Customs tariff
85363090

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838400113986
Basic packaging weight
0.076  kg

Transport packaging

Transport packaging quantity
28
EAN code for a transport packaging
3838400113993
Transport packaging weight
1.52  kg
Pallet quantity
9324
Classification
EC000941
Class name
Surge protection device for power supply systems
Number of knife blade fuse holders
1
Degree of protection (IP), front side
IP20
System configuration DC
No
System configuration IT
No
System configuration TN
Yes
System configuration TN-C
Yes
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
No
Nominal discharge surge current (8/20)
20
Nominal voltage AC
300
Short-circuit breaking capacity (Isccr)
25
Max. continuous voltage AC
300
Max. discharge surge current (8/20)
40
Mounting method
On basic element
Construction size
Other
Voltage protection level
1,5
Integrated backup fuse
No
Signalling at the device
Optical
Category type 2
Yes
Degree of protection (IP)
IP20
ETIM Classification – Version 7.0
