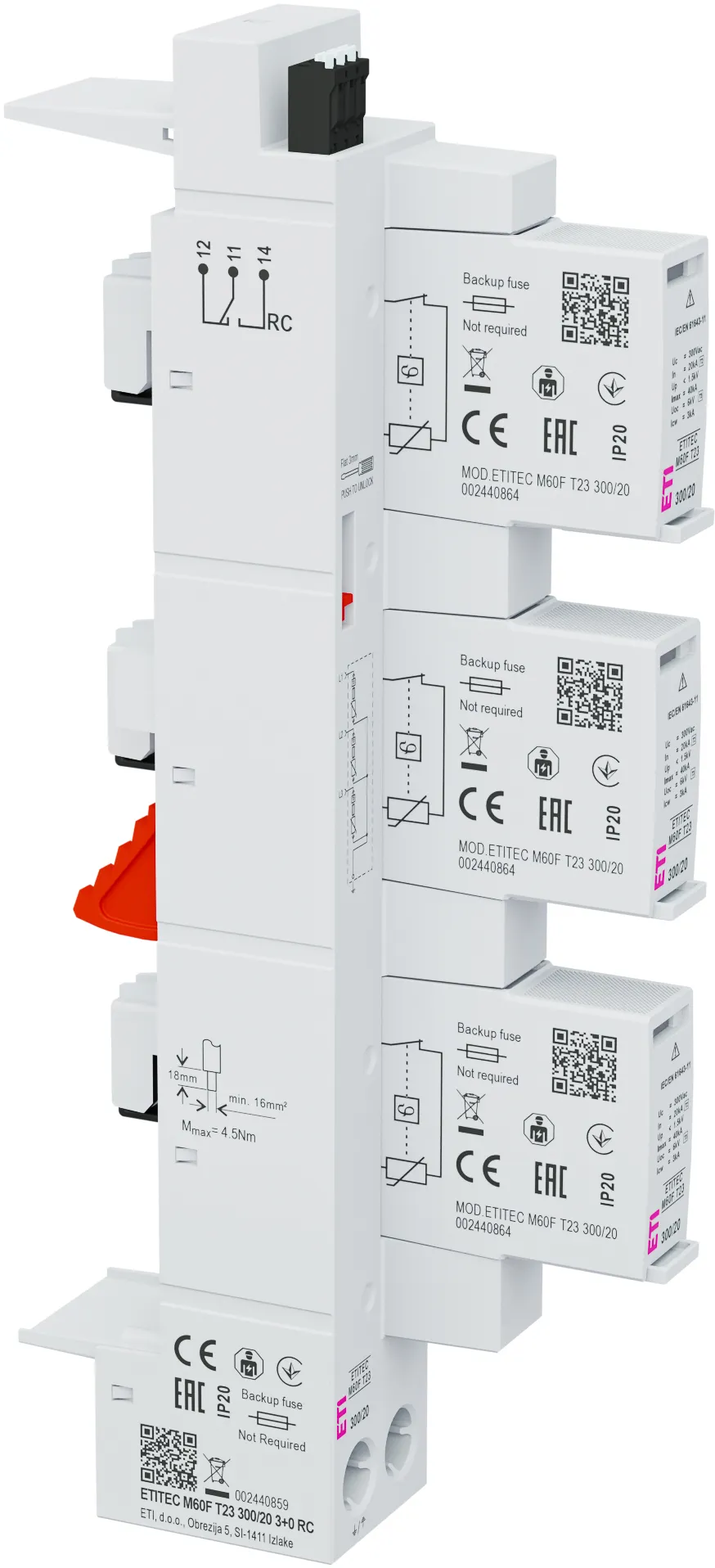

Surge arrester ETITEC M60F T23 300/20 3+0 RC 002440859
Specifications
- ETI Code:
- 002440859
- Description:
- ETITEC M60F T23 300/20 3+0 RC
- Class name:
- Surge arrester
- Network system:
- TN-C
- AC max continous operating voltage Uc:
- 300
- Function:
- SPD
- Type:
- T2, T3
- Catalogue Group:
- ETITEC M60
- Number of modules:
- 3
- Up - Voltage protection level (kV):
- 1,5
- Leakage current:
- YES
- Applied technology:
- MOV
- Built-in depth (mm):
- 107
- Max. discharge current Imax, 8/20 (kA):
- 40
- Remote signalisation:
- NO
- In 8/20 (kA):
- 20
Documents
Logistic Data
Product
- Net weight of the product
- 0.471 kg
- Customs tariff
- 85363090
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838400113887
- Basic packaging weight
- 0.565 kg
Transport packaging
- Transport packaging quantity
- 20
- EAN code for a transport packaging
- 3838400113894
- Transport packaging weight
- 11.3 kg
- Pallet quantity
- 540
ETIM Clasification
- Classification
- EC000941
- Class name
- Surge protection device for power supply systems
- Number of knife blade fuse holders
- 3
- Degree of protection (IP), front side
- IP20
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN-C
- Yes
- System configuration TN-S
- No
- System configuration TT
- No
- System configuration other
- No
- Nominal discharge surge current (8/20)
- 20
- Nominal voltage AC
- 240
- Short-circuit breaking capacity (Isccr)
- 25
- Max. continuous voltage AC
- 300
- Max. discharge surge current (8/20)
- 40
- Mounting method
- Busbar
- Construction size
- Other
- Voltage protection level
- 1,5
- Max. conductor cross section solid (solid, stranded)
- 35
- Max. conductor cross section flexible (fine-strand)
- 25
- With remote signalling contact
- Yes
- Integrated backup fuse
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
