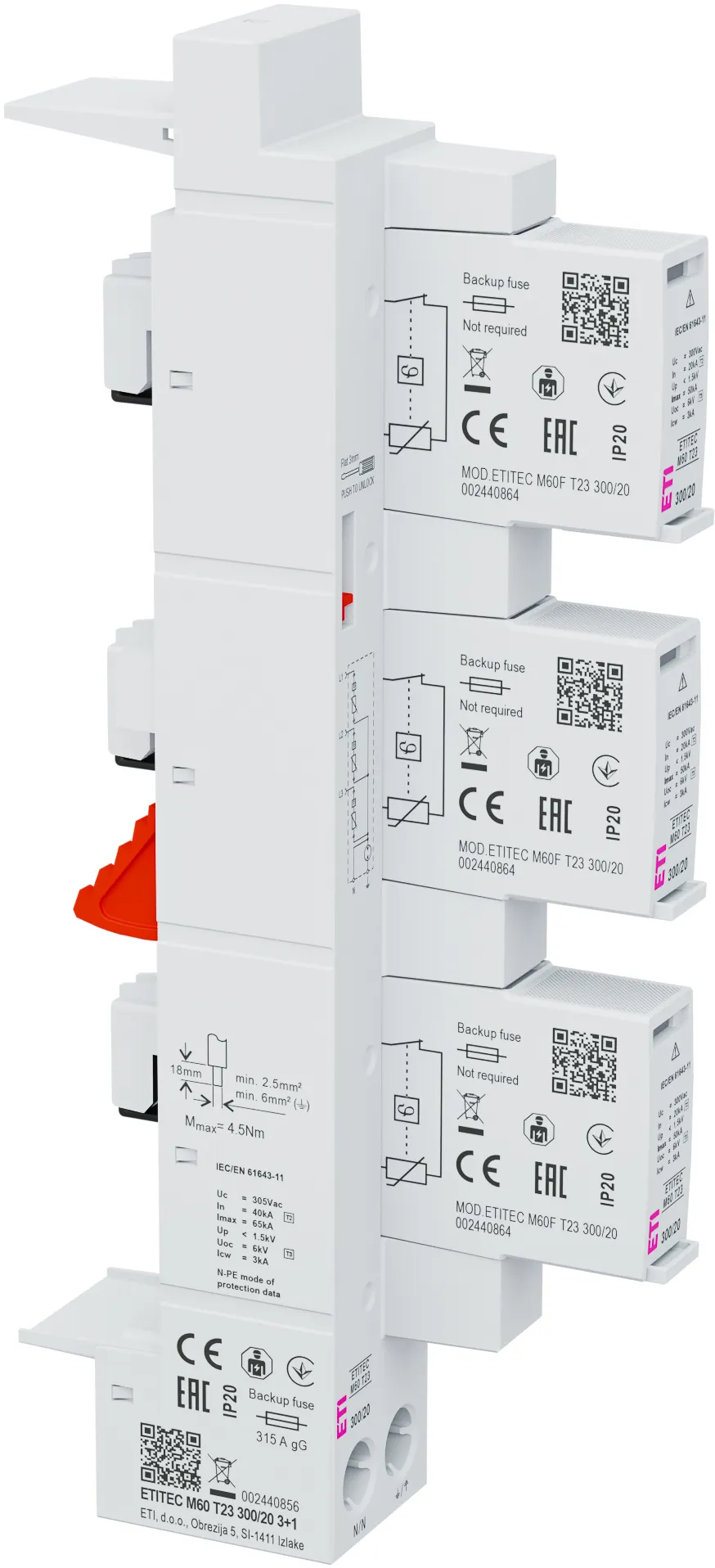

Surge arrester ETITEC M60 T23 300/20 3+1 002440856

Specifications

ETI Code:
002440856
Description:
ETITEC M60 T23 300/20 3+1
Class name:
Surge arrester
Network system:
TT/TN-S
AC max continous operating voltage Uc:
300
Function:
SPD
Type:
T2, T3
Catalogue Group:
ETITEC M60
Number of modules:
4
Up - Voltage protection level (kV):
1,5
Leakage current:
YES
Applied technology:
MOV
Built-in depth (mm):
107
Max. discharge current Imax, 8/20 (kA):
50
Remote signalisation:
NO
In 8/20 (kA):
20

Documents

Product

Net weight of the product
0.469  kg
Customs tariff
85363090

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838400113269
Basic packaging weight
0.563  kg

Transport packaging

Transport packaging quantity
20
EAN code for a transport packaging
3838400113276
Transport packaging weight
11.26  kg
Pallet quantity
540
Classification
EC000941
Class name
Surge protection device for power supply systems
Number of knife blade fuse holders
4
Degree of protection (IP), front side
IP20
System configuration DC
No
System configuration IT
No
System configuration TN-C
No
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
No
Nominal discharge surge current (8/20)
20
Nominal voltage AC
240
Short-circuit breaking capacity (Isccr)
25
Max. continuous voltage AC
300
Max. discharge surge current (8/20)
50
Mounting method
Busbar
Construction size
Other
Max. conductor cross section solid (solid, stranded)
35
Max. conductor cross section flexible (fine-strand)
25
Voltage protection level L-N
1,5
Voltage protection level N-PE
1,5
With remote signalling contact
No
Integrated backup fuse
No
Signalling at the device
Optical
Category type 2
Yes
Degree of protection (IP)
IP20
ETIM Classification – Version 7.0
