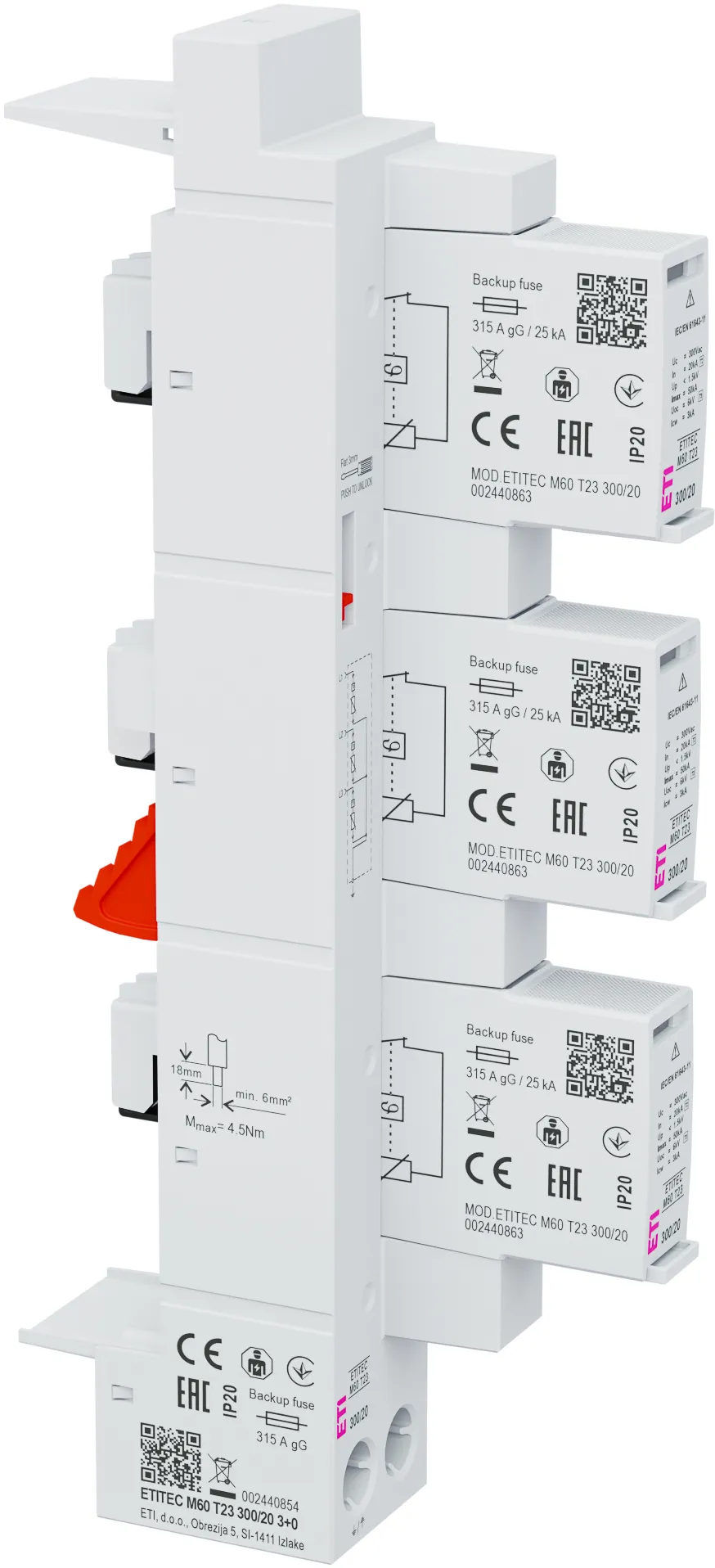

Surge arrester ETITEC M60 T23 300/20 3+0 002440854

Specifications

ETI Code:
002440854
Description:
ETITEC M60 T23 300/20 3+0
Class name:
Surge arrester
Network system:
TN-C
AC max continous operating voltage Uc:
300
Function:
SPD
Type:
T2, T3
Catalogue Group:
ETITEC M60
Number of modules:
3
Up - Voltage protection level (kV):
1,5
Leakage current:
YES
Applied technology:
MOV
Built-in depth (mm):
107
Max. discharge current Imax, 8/20 (kA):
50
Remote signalisation:
NO
In 8/20 (kA):
20

Documents

Product

Net weight of the product
0.433  kg
Customs tariff
85363090

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838400113221
Basic packaging weight
0.527  kg

Transport packaging

Transport packaging quantity
20
EAN code for a transport packaging
3838400113238
Transport packaging weight
10.54  kg
Pallet quantity
540
Classification
EC000941
Class name
Surge protection device for power supply systems
Degree of protection (IP), front side
IP20
Number of knife blade fuse holders
3
System configuration DC
No
System configuration IT
No
System configuration TN-C
Yes
System configuration TN-S
No
System configuration TT
No
System configuration other
No
Nominal discharge surge current (8/20)
20
Nominal voltage AC
240
Short-circuit breaking capacity (Isccr)
25
Max. continuous voltage AC
300
Max. discharge surge current (8/20)
50
Mounting method
Busbar
Construction size
Other
Voltage protection level
1,5
Max. conductor cross section solid (solid, stranded)
35
Max. conductor cross section flexible (fine-strand)
25
With remote signalling contact
No
Integrated backup fuse
No
Signalling at the device
Optical
Category type 2
Yes
Degree of protection (IP)
IP20
ETIM Classification – Version 7.0
