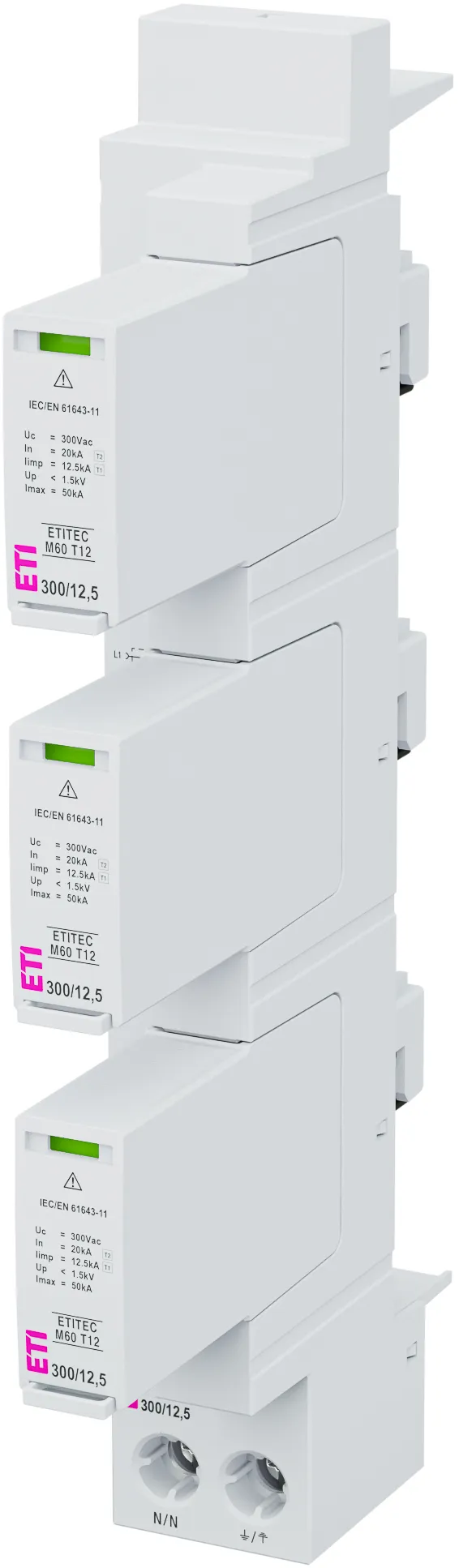

Surge arrester ETITEC M60 T12 300/12,5 3+1 002440852

Specifications

ETI Code:
002440852
Description:
ETITEC M60 T12 300/12,5 3+1
Class name:
Surge arrester
Network system:
TT/TN-S
AC max continous operating voltage Uc:
300
Function:
SPD
Type:
T1, T2
Catalogue Group:
ETITEC M60
Number of modules:
4
Up - Voltage protection level (kV):
1,5
Leakage current:
YES
Applied technology:
MOV
Built-in depth (mm):
123
Iimp(10/350) impulse current (kA):
12.5
Max. discharge current Imax, 8/20 (kA):
50
Remote signalisation:
NO
In 8/20 (kA):
20

Documents

Product

Net weight of the product
0.61  kg
Customs tariff
85363090

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838400113184
Basic packaging weight
0.671  kg

Transport packaging

Transport packaging quantity
20
EAN code for a transport packaging
3838400113191
Transport packaging weight
14.08  kg
Pallet quantity
540
Classification
EC001457
Class name
Combined arrester for power supply systems
Nominal discharge surge current (8/20)
20
Degree of protection (IP), front side
IP20
Number of knife blade fuse holders
4
System configuration DC
No
System configuration IT
No
System configuration TN-C
No
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
No
Number of poles
4
Lightning impulse current (10/350 µs)
12,5
Max. continuous voltage AC
300
Nominal voltage AC
240
Voltage protection level
1,5
Voltage protection level L-N
1,5
Voltage protection level N-PE
1,5
Specific energy (W/R)
39
Mounting method
Busbar
Construction size
Other
Remote signalling
No
Signalling at the device
Optical
Test class
Type 1 + 2
Exhausting
No
Integrated backup fuse
No
Degree of protection (IP)
IP20
ETIM Classification – Version 7.0
