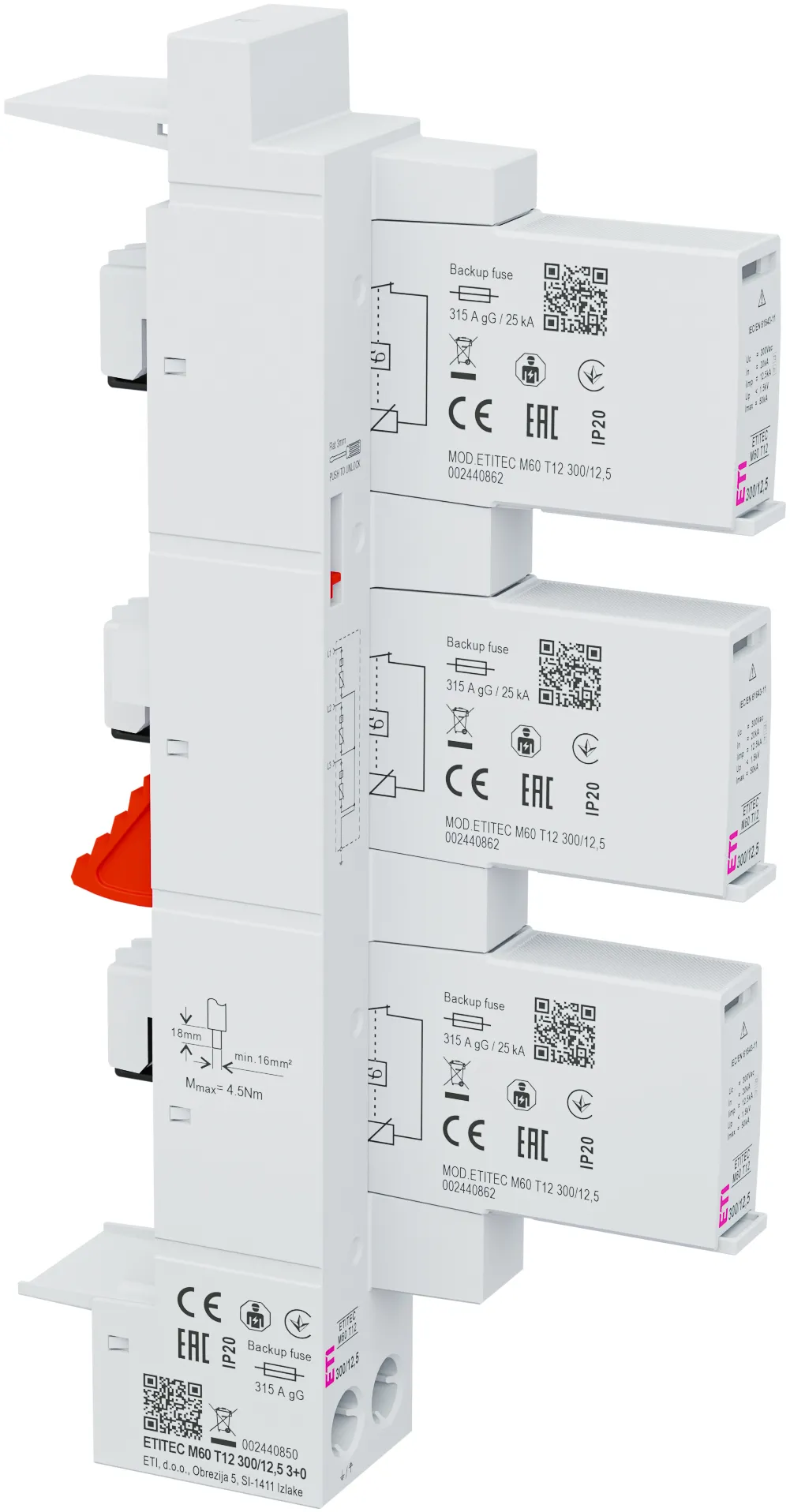

Surge arrester ETITEC M60 T12 300/12,5 3+0 002440850
Specifications
- ETI Code:
- 002440850
- Description:
- ETITEC M60 T12 300/12,5 3+0
- Class name:
- Surge arrester
- Network system:
- TN-C
- AC max continous operating voltage Uc:
- 300
- Function:
- SPD
- Type:
- T1, T2
- Catalogue Group:
- ETITEC M60
- Number of modules:
- 3
- Up - Voltage protection level (kV):
- 1,5
- Leakage current:
- YES
- Applied technology:
- MOV
- Built-in depth (mm):
- 123
- Iimp(10/350) impulse current (kA):
- 12.5
- Max. discharge current Imax, 8/20 (kA):
- 50
- Remote signalisation:
- NO
- In 8/20 (kA):
- 20
Documents
Logistic Data
Product
- Net weight of the product
- 0.569 kg
- Customs tariff
- 85363090
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838400113146
- Basic packaging weight
- 0.633 kg
Transport packaging
- Transport packaging quantity
- 20
- EAN code for a transport packaging
- 3838400113832
- Transport packaging weight
- 13.26 kg
- Pallet quantity
- 540
ETIM Clasification
- Classification
- EC001457
- Class name
- Combined arrester for power supply systems
- Degree of protection (IP), front side
- IP20
- Nominal discharge surge current (8/20)
- 20
- Number of knife blade fuse holders
- 3
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN-C
- Yes
- System configuration TN-S
- No
- System configuration TT
- No
- System configuration other
- No
- Number of poles
- 3
- Lightning impulse current (10/350 µs)
- 12,5
- Max. continuous voltage AC
- 300
- Nominal voltage AC
- 240
- Voltage protection level
- 1,5
- Specific energy (W/R)
- 39
- Mounting method
- Busbar
- Construction size
- Other
- Remote signalling
- No
- Signalling at the device
- Optical
- Test class
- Type 1 + 2
- Exhausting
- No
- Integrated backup fuse
- No
- Degree of protection (IP)
- IP20
